Reducing Sprains and Strains

Topics

9 min read

The mission Key learnings Timeline Why sprains and strains? Solutions What this research means Meet the scientists Talking Dairy podcast Collaborators and funders Additional resources

Over three years, this project worked closely with farmers and other experts to co-design equipment to reduce sprain and strain injuries on-farm. Sprains and strains are common injuries on dairy farms, especially during the busy calving season. However, many of these injuries can be prevented. Innovative solutions were developed and tested to reduce these injuries and the best are now available for farmers.

The mission

To reduce sprain and strain injuries on-farm and develop practical solutions to reduce these. This project was in partnership with ACC, spanning three years from 2021 to 2024.

Project status: completed

Key learnings

  • Sprains and strains are common on dairy farms, but many are preventable.
  • Better safety equals improved productivity, as many farmers with sprain or strain injuries took a long time to feel fully recovered.
  • Scientists worked with farmers and other experts on co-design and various prototypes were tested on-farm by farmers and refined using farmer feedback.
  • The Easy-Entry Calf Trailer Gate is now available nationwide – contact KEA Trailers 0800 869 532 and sales@keatrailers.co.nz
  • Go on Gallagher's waitlist for the Easy-Access Calf Pen Gate

Easy-Entry Calf Trailer Gate

1 / 6 images

Easy-Access Calf Pen Gate

2 / 6 images

Easy-Lift Bucket Trolley

3 / 6 images

Cups-On Mat

4 / 6 images

Flexible Breast Rail

5 / 6 images

Exosuits

6 / 6 images

What's been happening?

The last few years have been busy, see what we have been up to in the timeline below.

Understanding the cause · June 2021

Working with farmers to define the issues leading to on-farm sprains and strain injuries.

Co-designing sprains and strains solutions · June 2022

Working with farmers and other experts to reduce these injuries.

Easy-to-implement solutions available · June 2023

Developing and testing concepts, prototyping with farmers, and testing them on-farm and refining them through farmer feedback, to create robust products suitable for farmers to buy.

Project completed · June 2024

Why did we look at sprains and strains?

According to New Zealand’s Accident Compensation Corporation (ACC) data, sprains and strains (overstretching or tearing of soft tissues in and around a person’s joints) are common on dairy farms – but many are preventable.

In 2022 and 2023, there were about 1,500 claims to ACC each year (totalling $5-6 million and representing around 40% of dairy-related claims). Many of those injured take injury leave at the busiest time of the year. The highest risk period for injuries is between August and October. This coincides with the spring calving season when we often see longer working hours and fatigue occurring.

In 2021/22, we surveyed 370 farmers and employees from farms that did and didn’t experience sprain and strain injuries, and found:

Survey results

Risks around calf pickup and rearing:
  • Injuries occurring during in-paddock tasks of catching and lifting calves into a trailer, carrying buckets of milk, and lifting and moving calves around for feeding or between pens.
  • In-paddock injuries weren’t just associated with new-born calves, they also included a surprising number of slips and trips due to uneven and slippery ground.
  • Most injuries (34%) happened in the paddock, from either slips, trips or falls, or from bending or twisting.
  • Calf-related injuries (24%), mostly from bending, twisting or lifting heavy objects like calves, buckets, or bags of meal.
  • Most injuries were to the back (25%), often from calf-related activities.
Risks around milking:
  • Milking was a high-risk area, due to the repetitive twisting and reaching during the milking process.
  • Also from slipping, tripping or falling on steps, hoses, uneven concrete and slippery surfaces.
  • Milking caused 22% of injuries, mostly from slipping, tripping or falling (49%), but also by bending, twisting, and reaching actions (32%).
Risks around injured body area:
  • Ankle (15%), knee (13%) and shoulder injuries (12%) were the next most common.
  • Other body areas accounted for 1-4% of all injuries each.
Impact on time off:
  • These injuries have a big impact on people and productivity.
  • While 50% of injured farmers took no time off, 28% needed under one week off, and 21% needed more than one week.
  • On average, farmers with injuries took 12 days off work, but took 26 days to feel fully recovered.

Keep a spring in your step - Picking up calves

1 / 3 videos 1 min

Keep a spring in your step - Feeding calves

2 / 3 videos 1:04 min

Keep a spring in your step - Choosing the right footwear

3 / 3 videos 0:59 min

Solutions

Workshops used research insights to develop ideas that addressed the major risks. They involved farmers, health and safety experts, engineers, physios, ergonomics experts and dairy farm systems scientists. The aim was to eliminate risky tasks (where feasible) and/or to use engineering solutions to reduce risks around essential tasks.

Physical prototypes were produced by the project’s commercial product development partners, tested with farmers and refined based on their feedback.

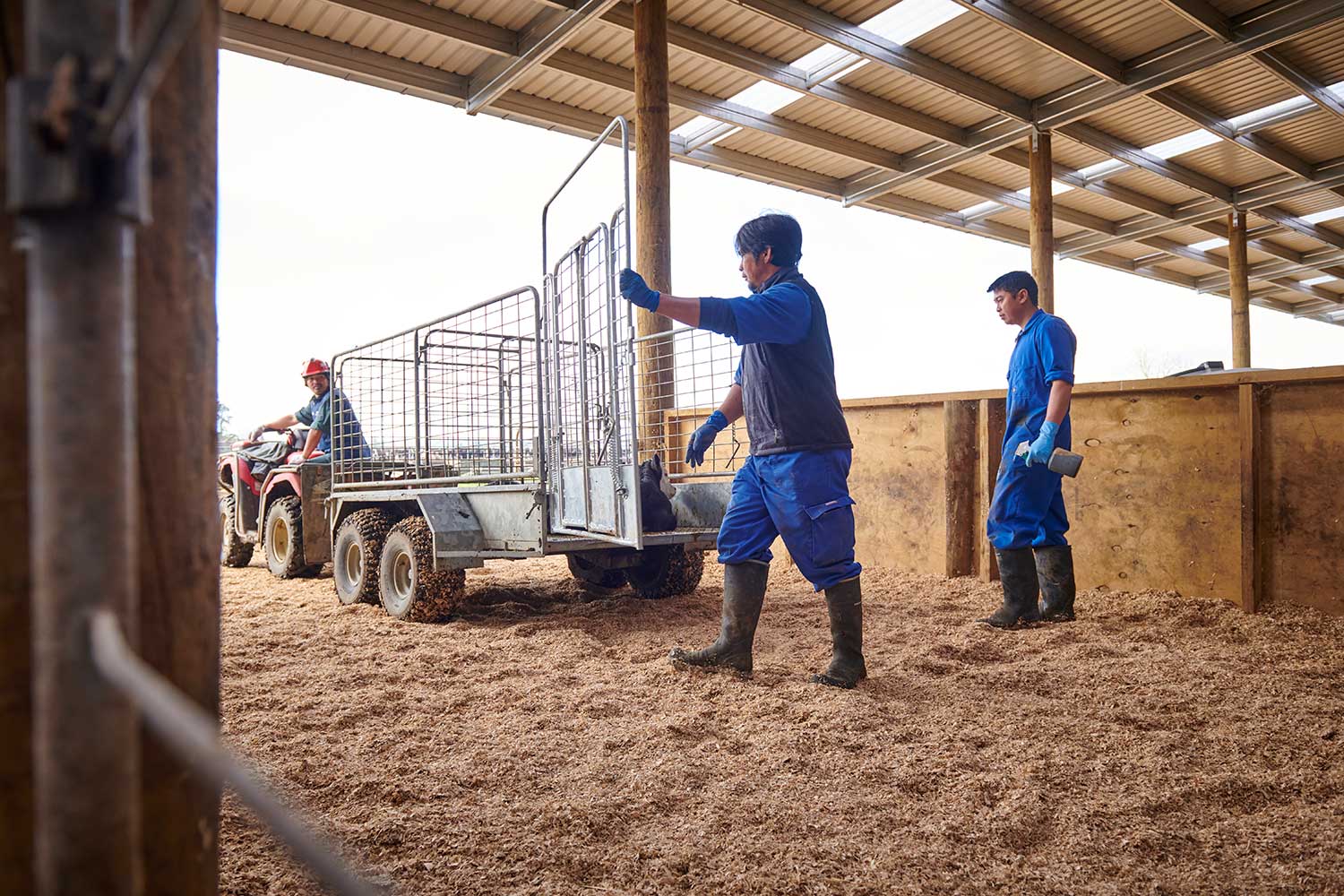

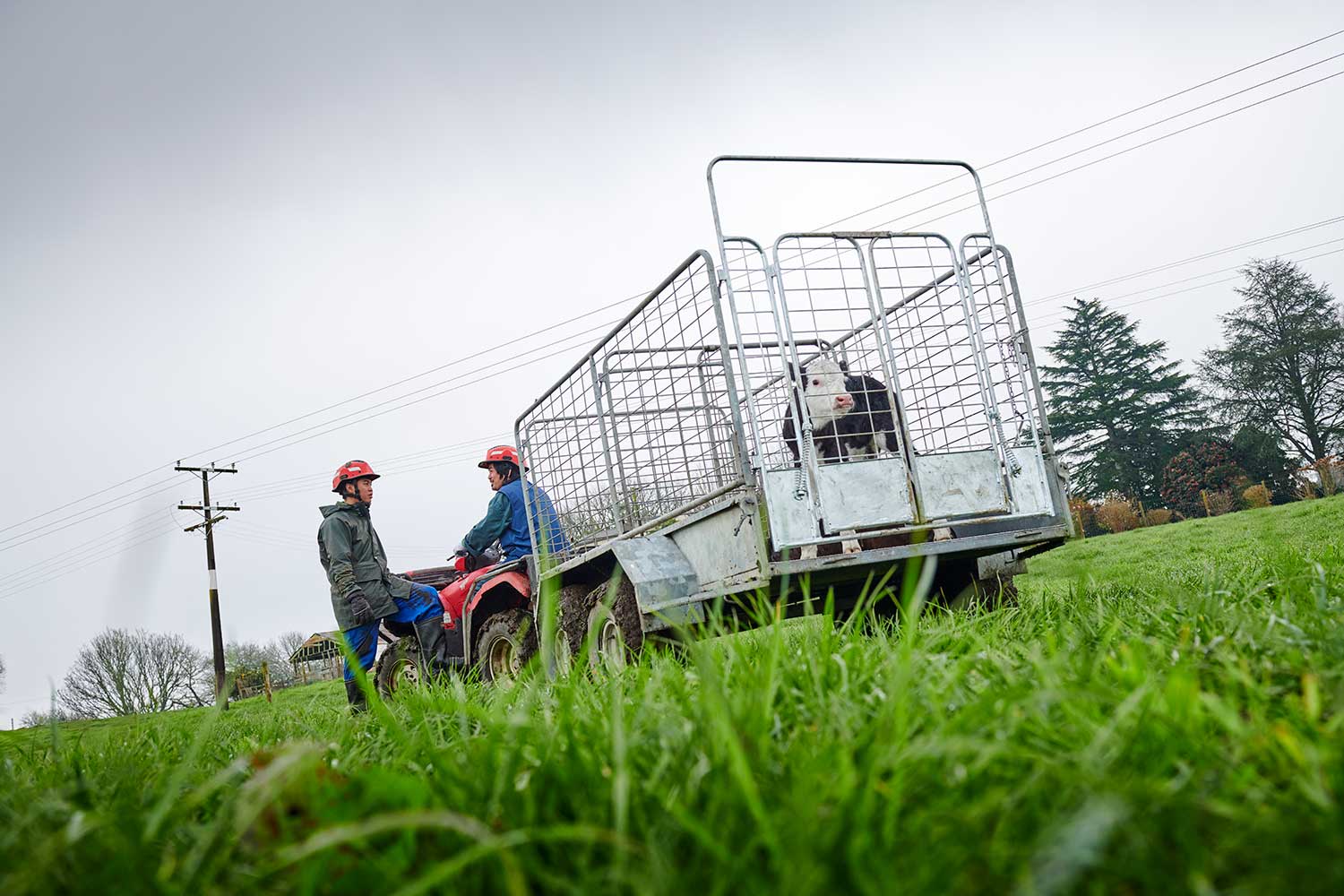

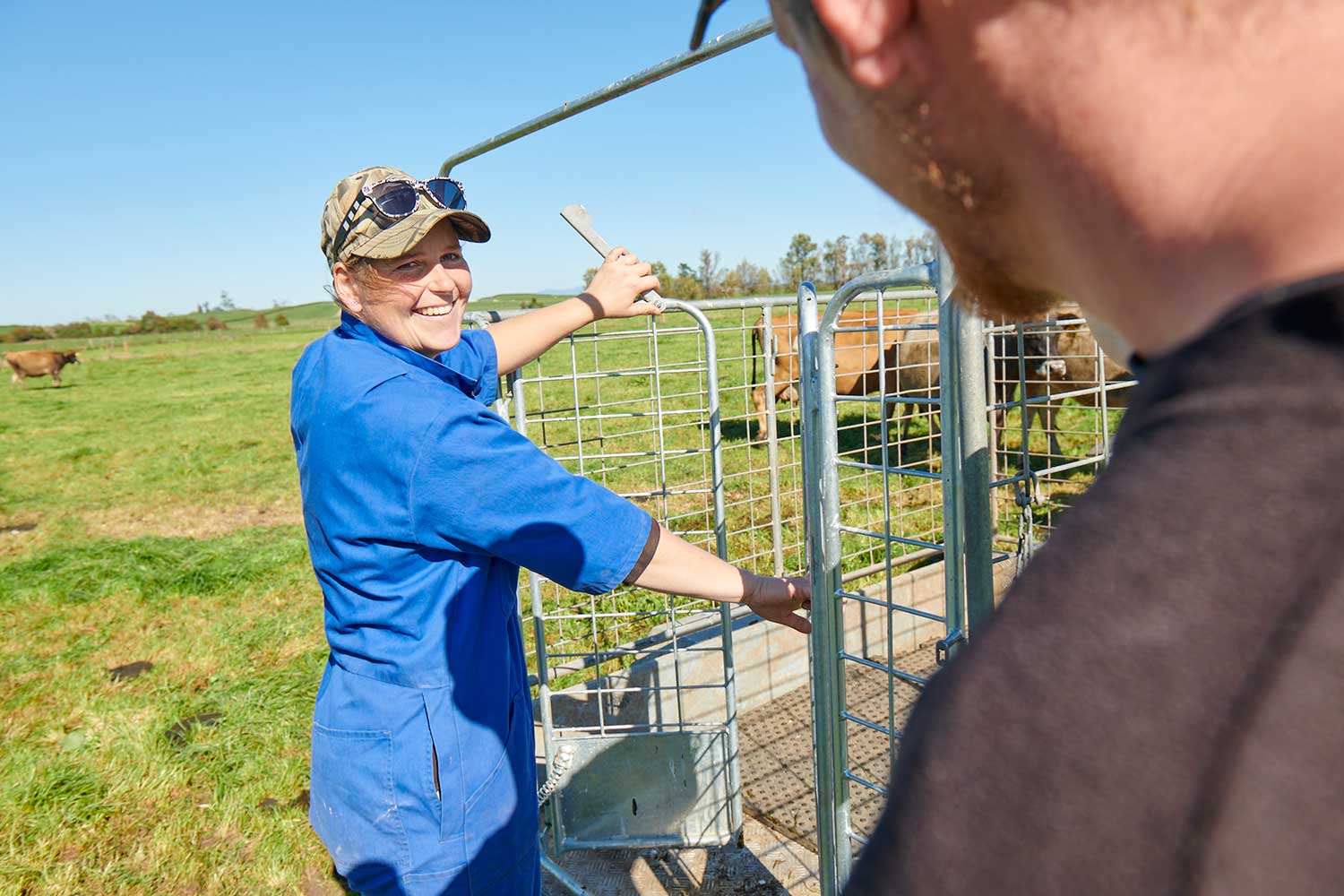

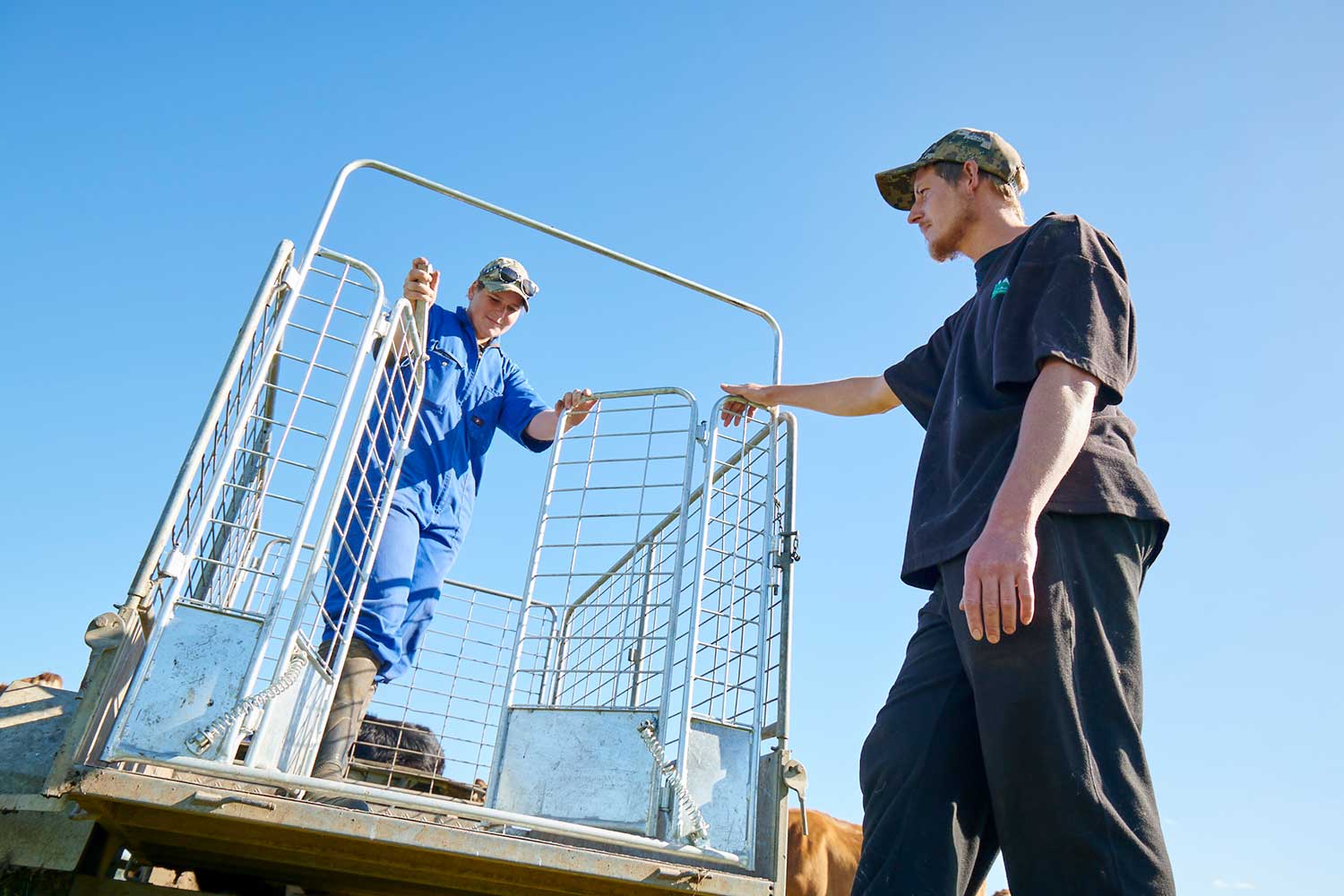

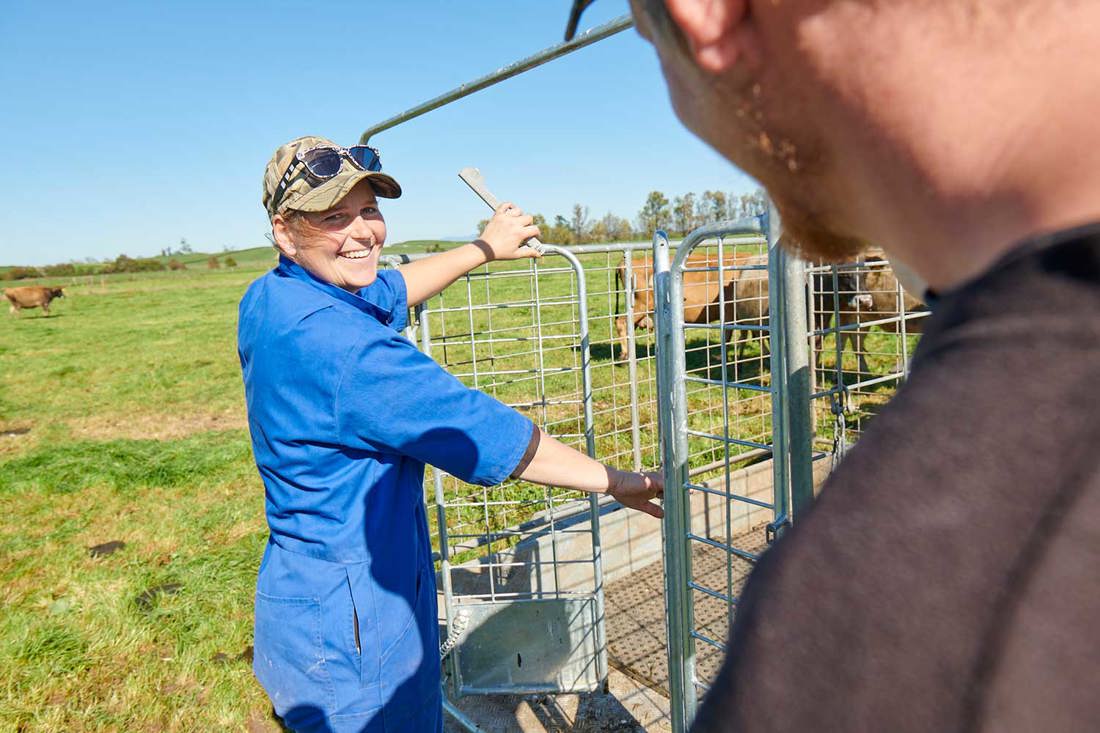

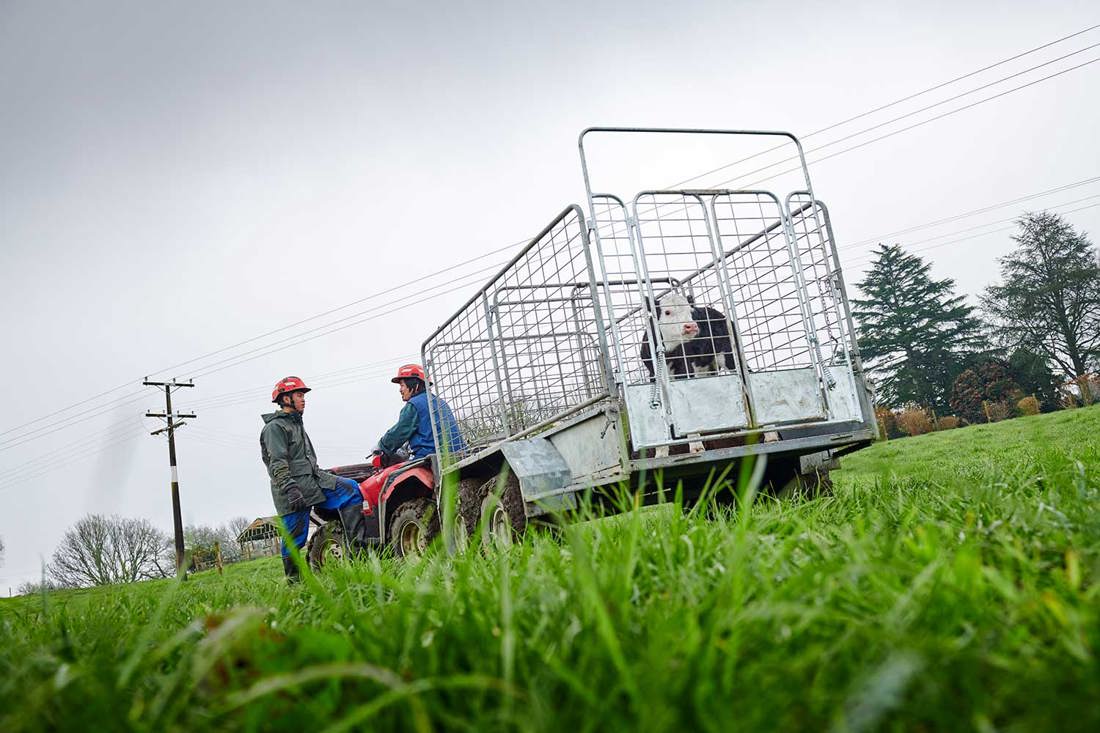

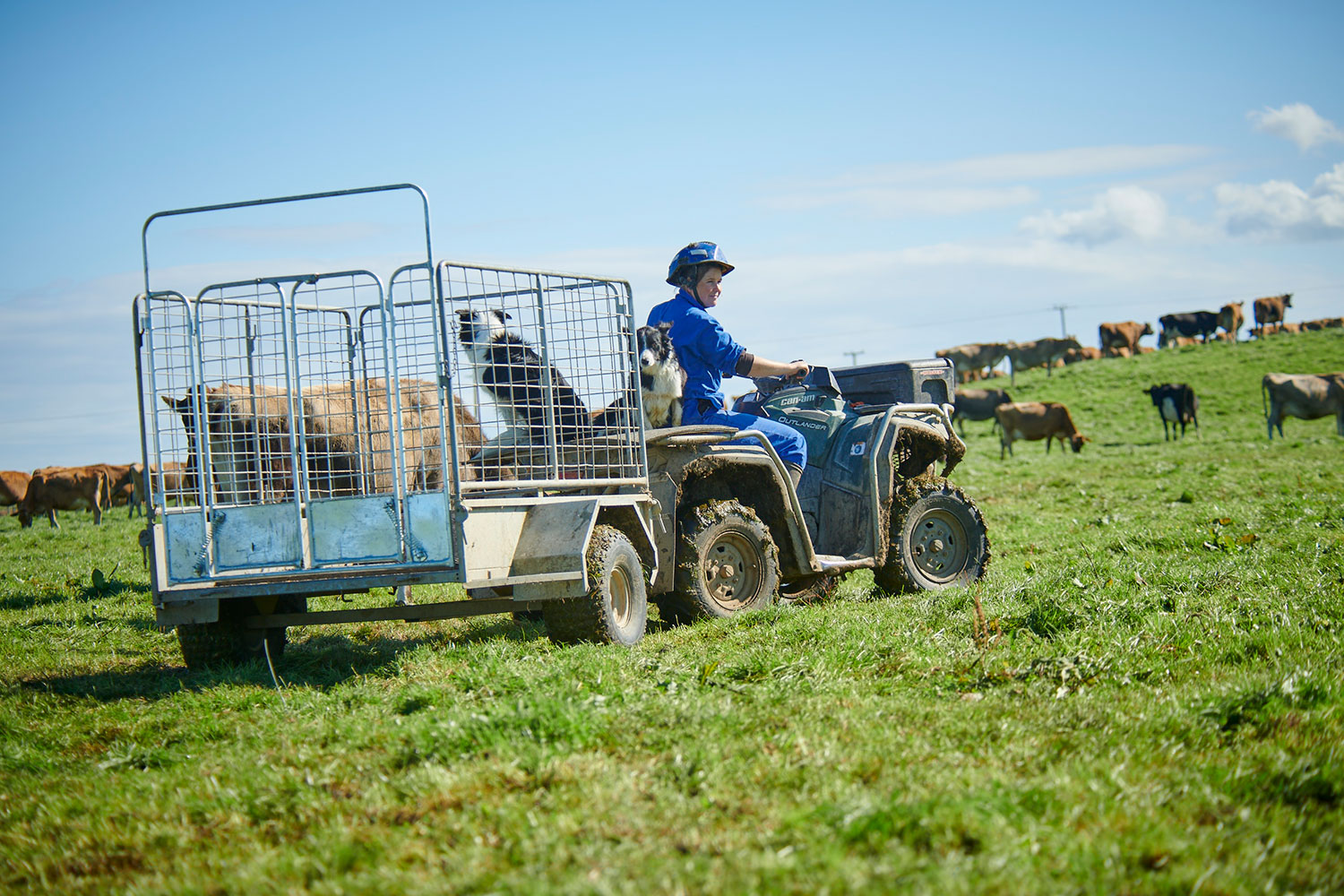

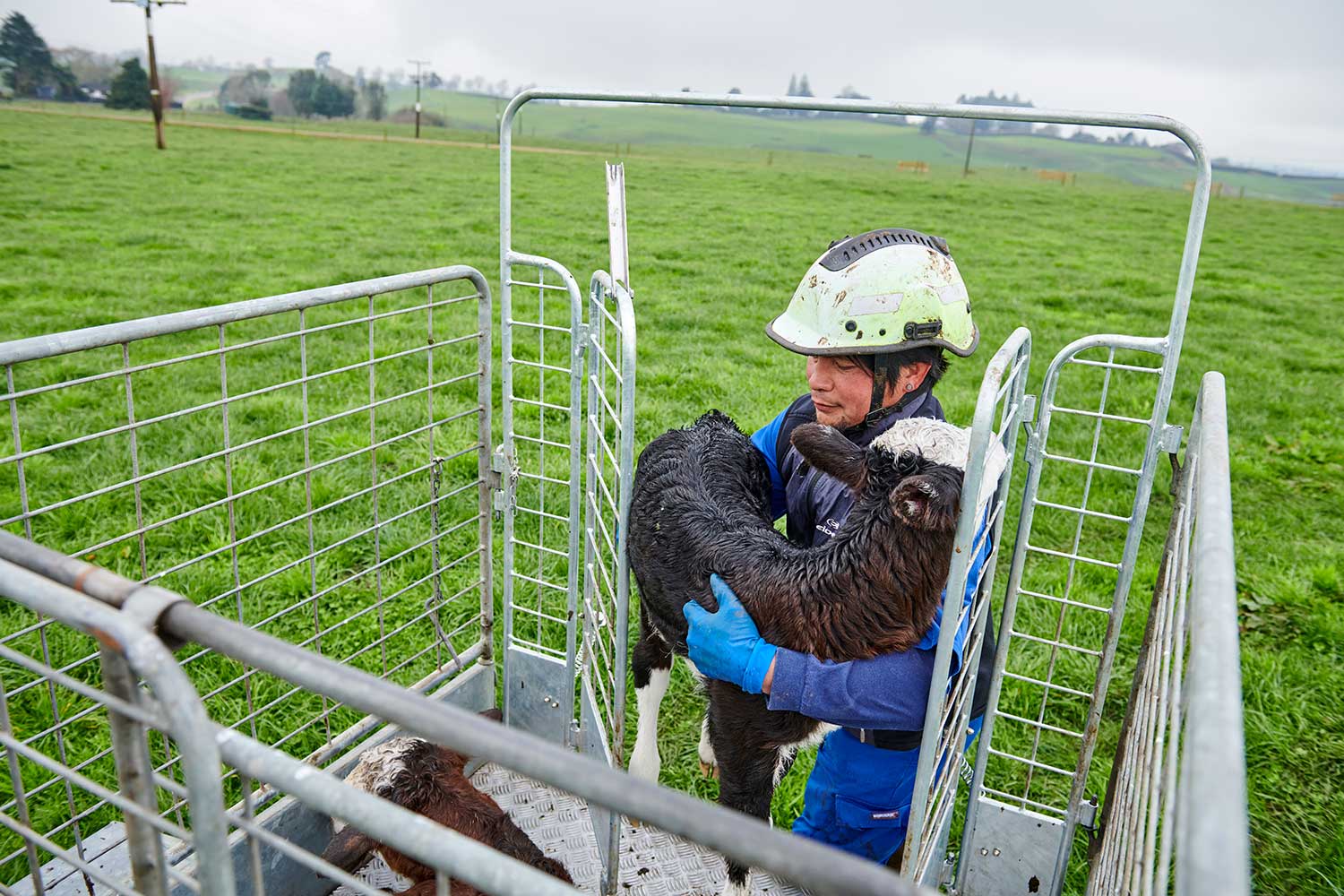

Easy-Entry Calf Trailer Gate

Problem: Research found that collecting calves from the paddock is an injury-risk area.

Solution: A spring-loaded, one-way self-closing saloon gate that minimises the struggle of opening and closing the trailer gate while handling a wriggling calf or preventing escapees. Analysis by an ergonomics consultant rated this design better for posture than an existing calf trailer design.

Availability: DairyNZ worked with QCONZ and Kea Trailers to design, build and test a trailer with easy-entry gates. It can now be purchased either with a new trailer, or as a standalone gate to retrofit to existing Kea trailers. Custom sizes can be made to order. The Easy-Entry Calf Trailer Gate is available from KEA Trailers.

1 / 6 images

2 / 6 images

3 / 6 images

4 / 6 images

5 / 6 images

6 / 6 images

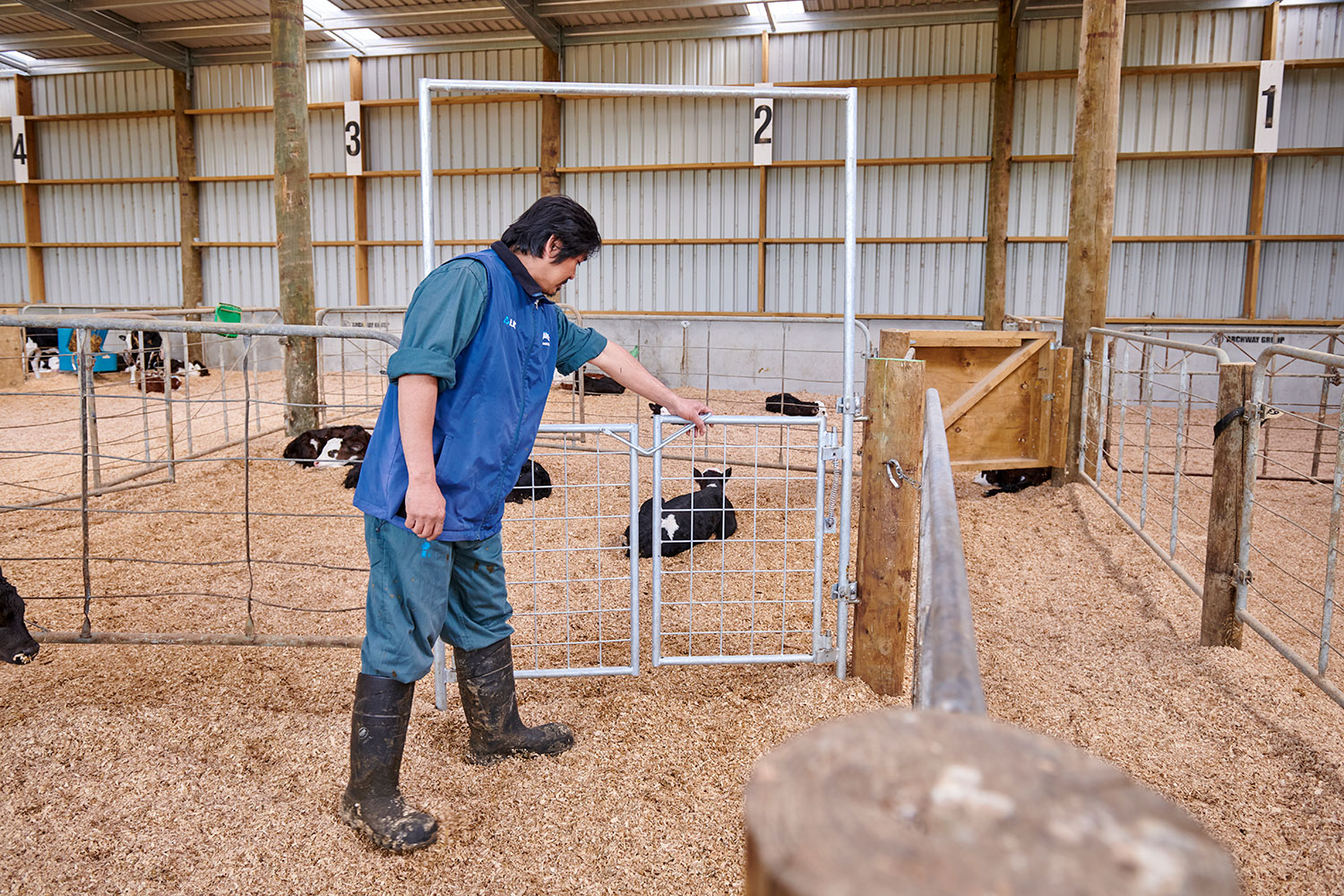

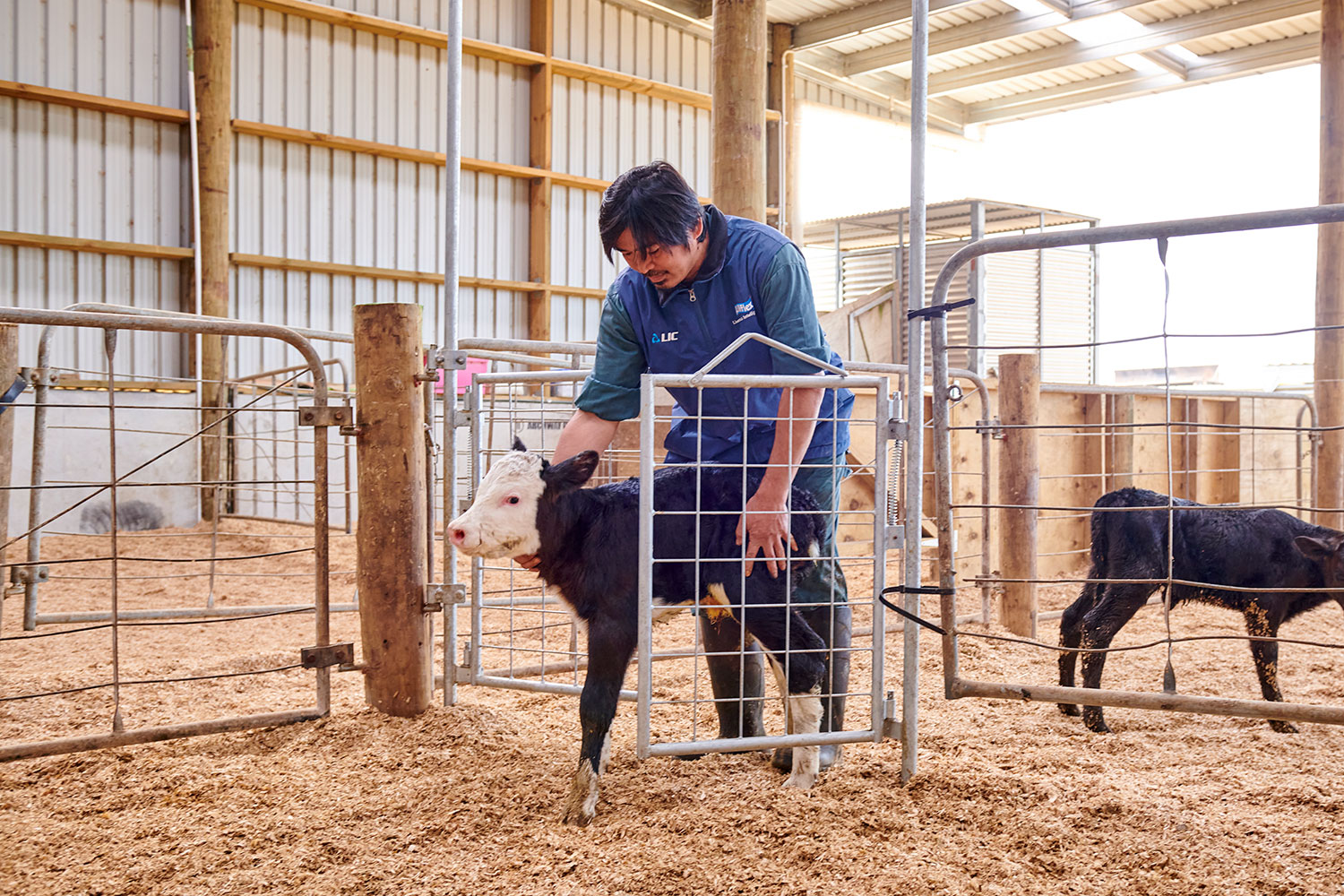

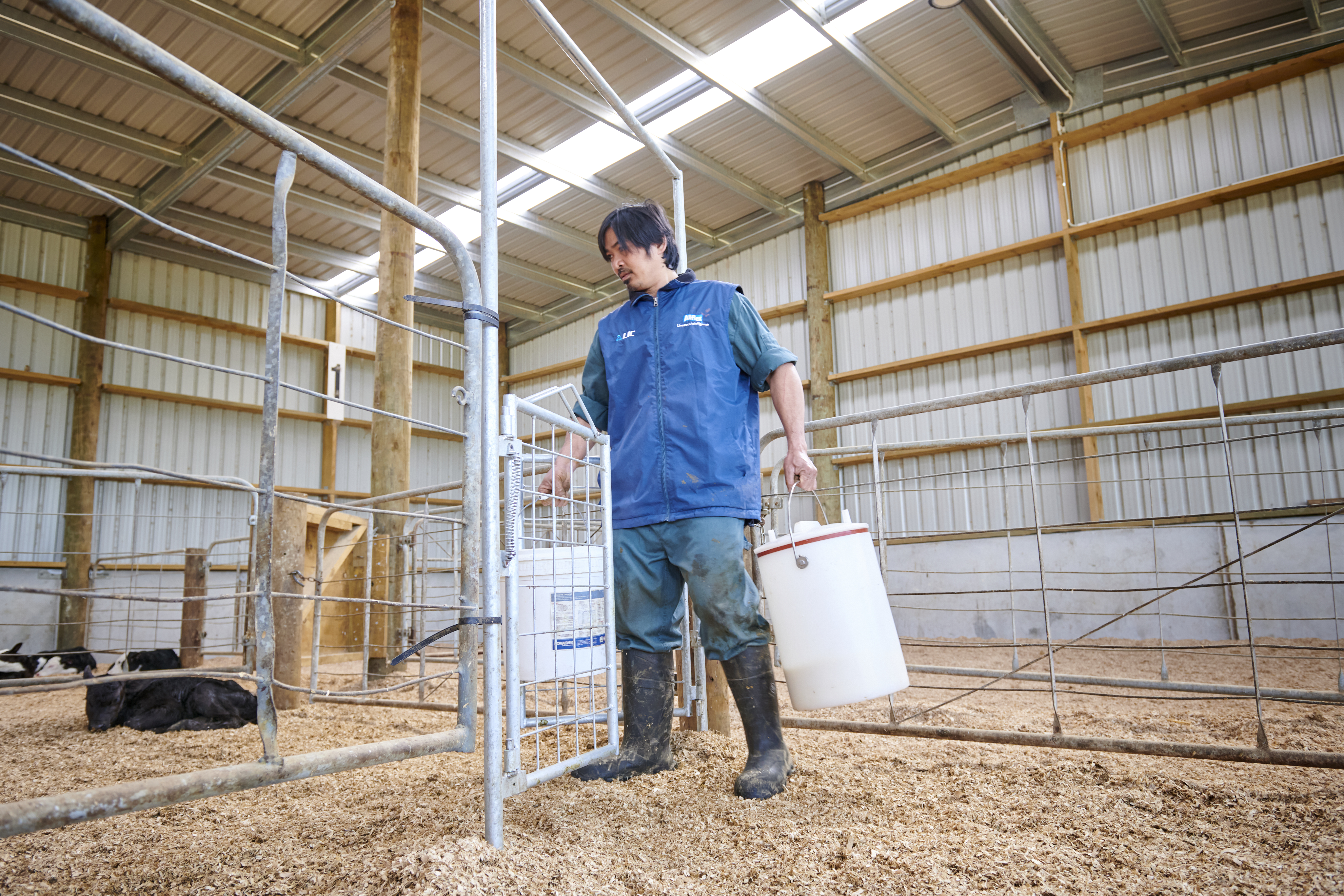

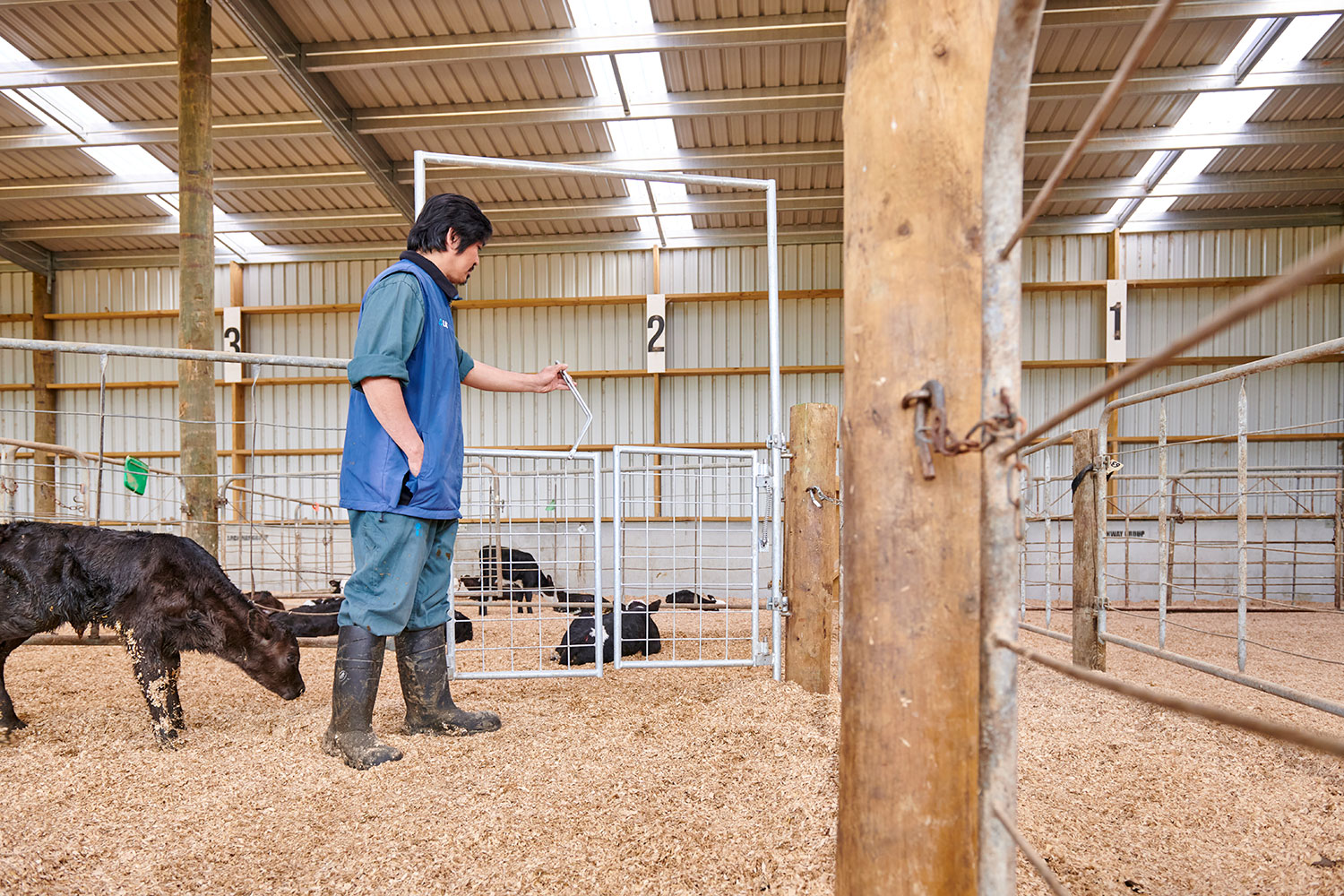

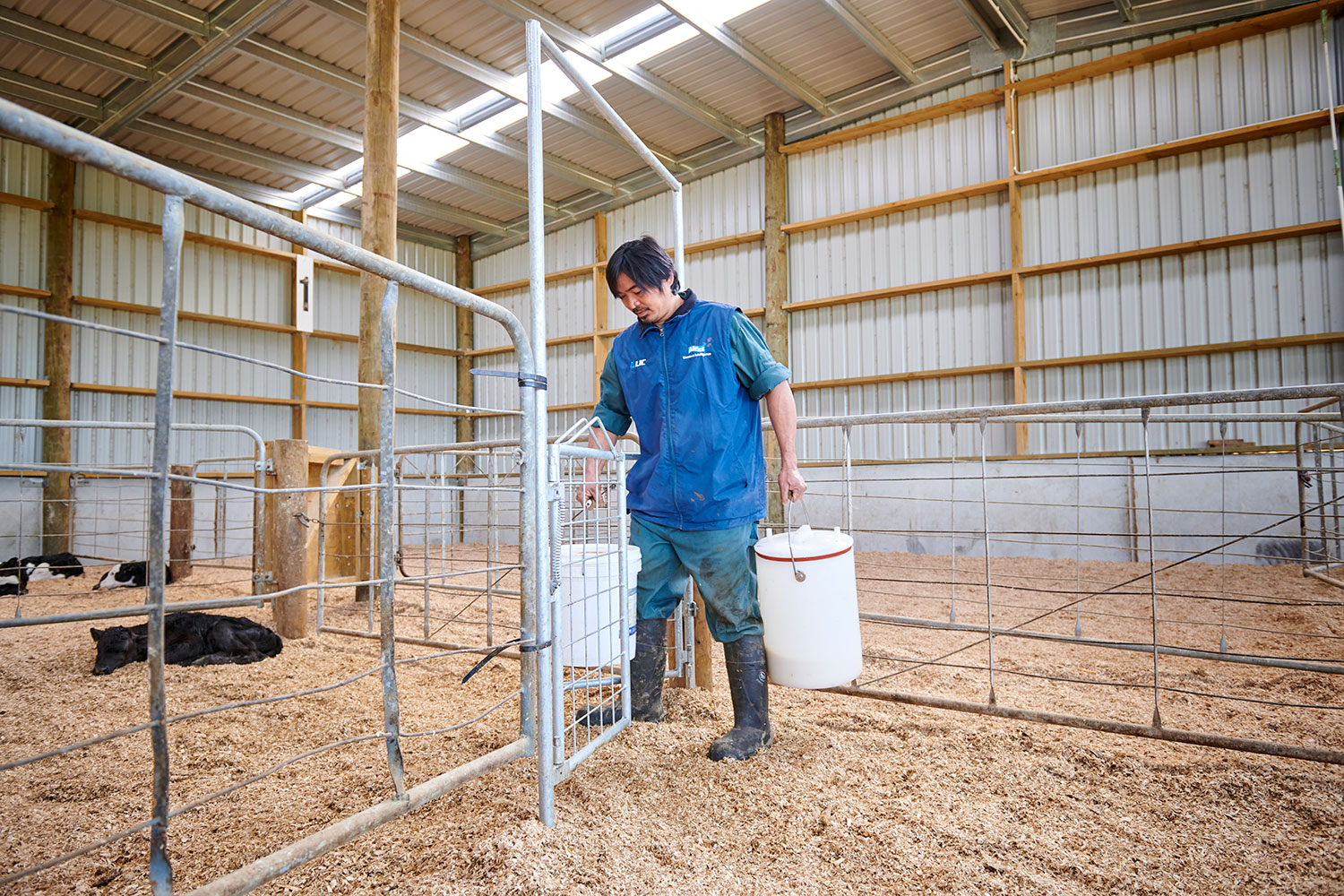

Easy-Access Calf Pen Gate

Problem: Calf rearing is an intense time of year on farms, and there are several injury risk areas including lifting calves, teaching calves to drink, and lifting buckets of milk and feed. Additionally, moving between calf pens with heavy weight can lead to risks when reaching or climbing over.

Solution: The design team, which included farmers, created a concept of a saloon-door gate system to move between pens. DairyNZ worked with QCONZ and Gallagher to design and test this concept on farms over spring calving.

Availability: DairyNZ worked with Gallagher on this solution. Click here to go on the waitlist with Gallagher.

1 / 5 images

2 / 5 images

3 / 5 images

4 / 5 images

5 / 5 images

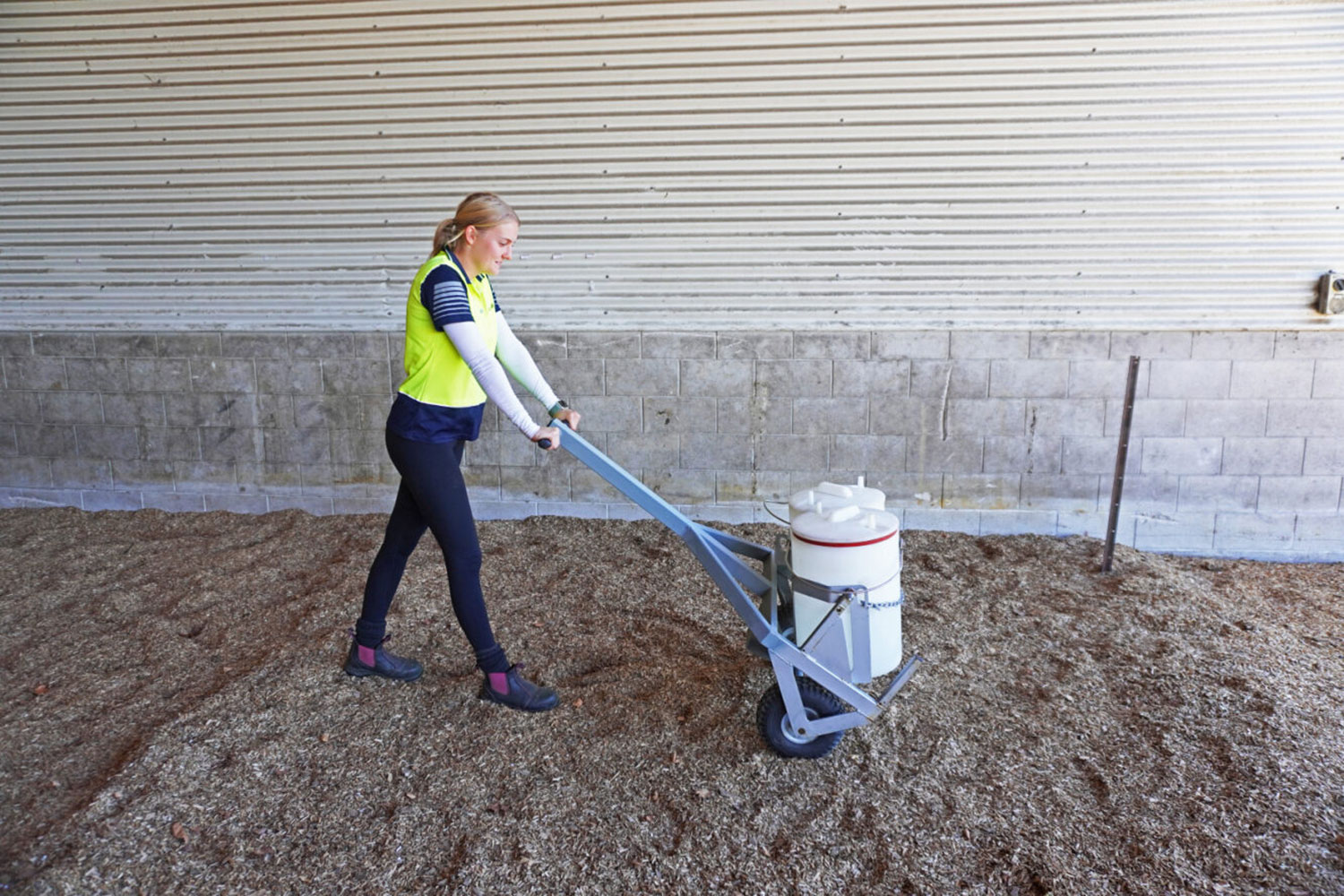

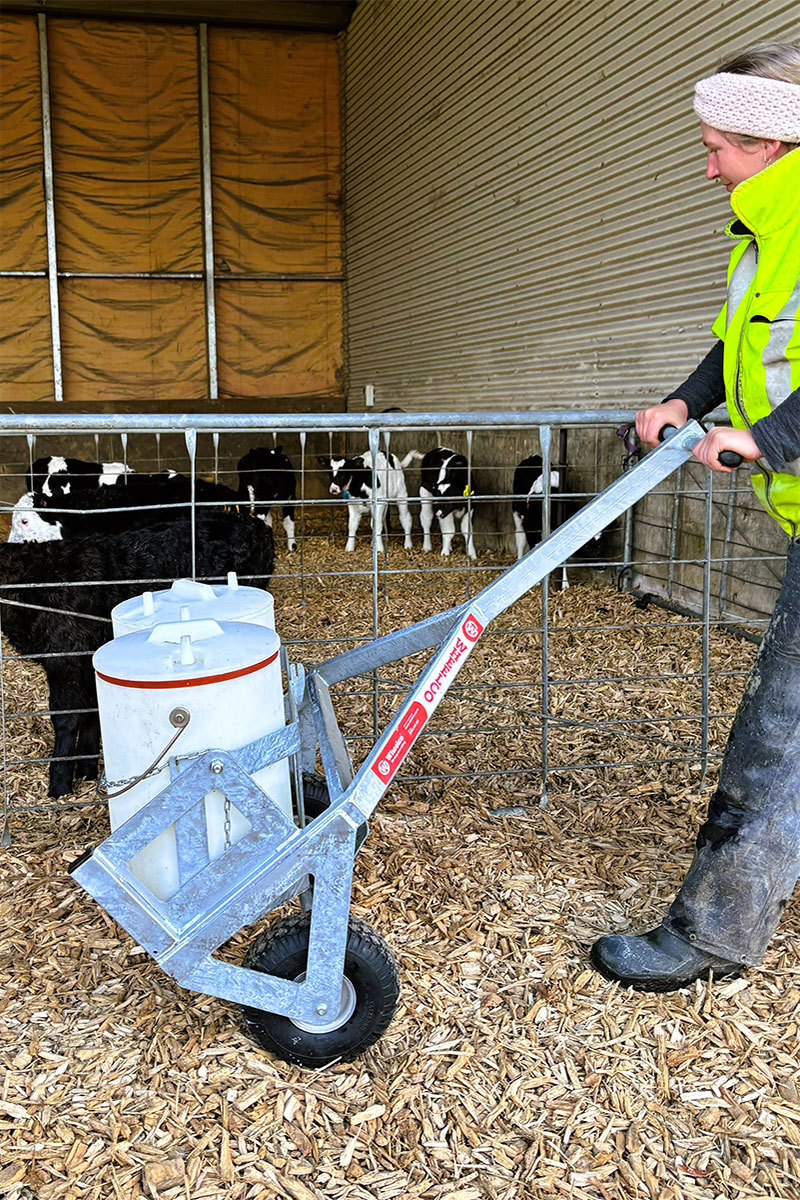

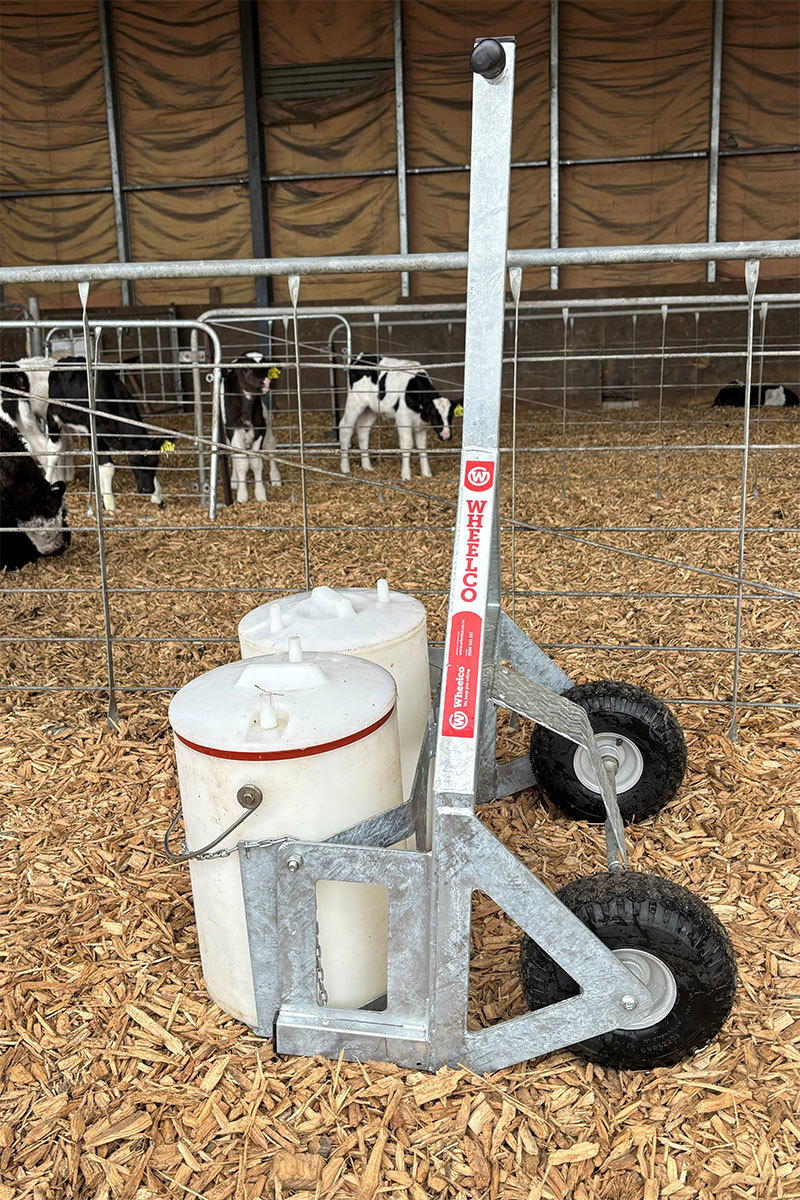

Easy-Lift Bucket Trolley

Problem: Injuries from lifting heavy calf milk buckets.

Solution: This pivoting trolley was designed to provide a safer and more efficient way to transport heavy buckets of milk or colostrum from the dairy to the calf-rearing shed. Buckets can slide onto the milk trolley platform without lifting, and remain upright when being moved, to prevent spills.

While many farms use piped milk systems, or transfer milk via trailers, this trolley offers a simple and cost-effective option for smaller farms. The project team has worked with WheelCo to create the prototypes.

Availability: WheelCo is evaluating production feasibility of the Easy-Lift Bucket Trolley.

1 / 2 images

2 / 2 images

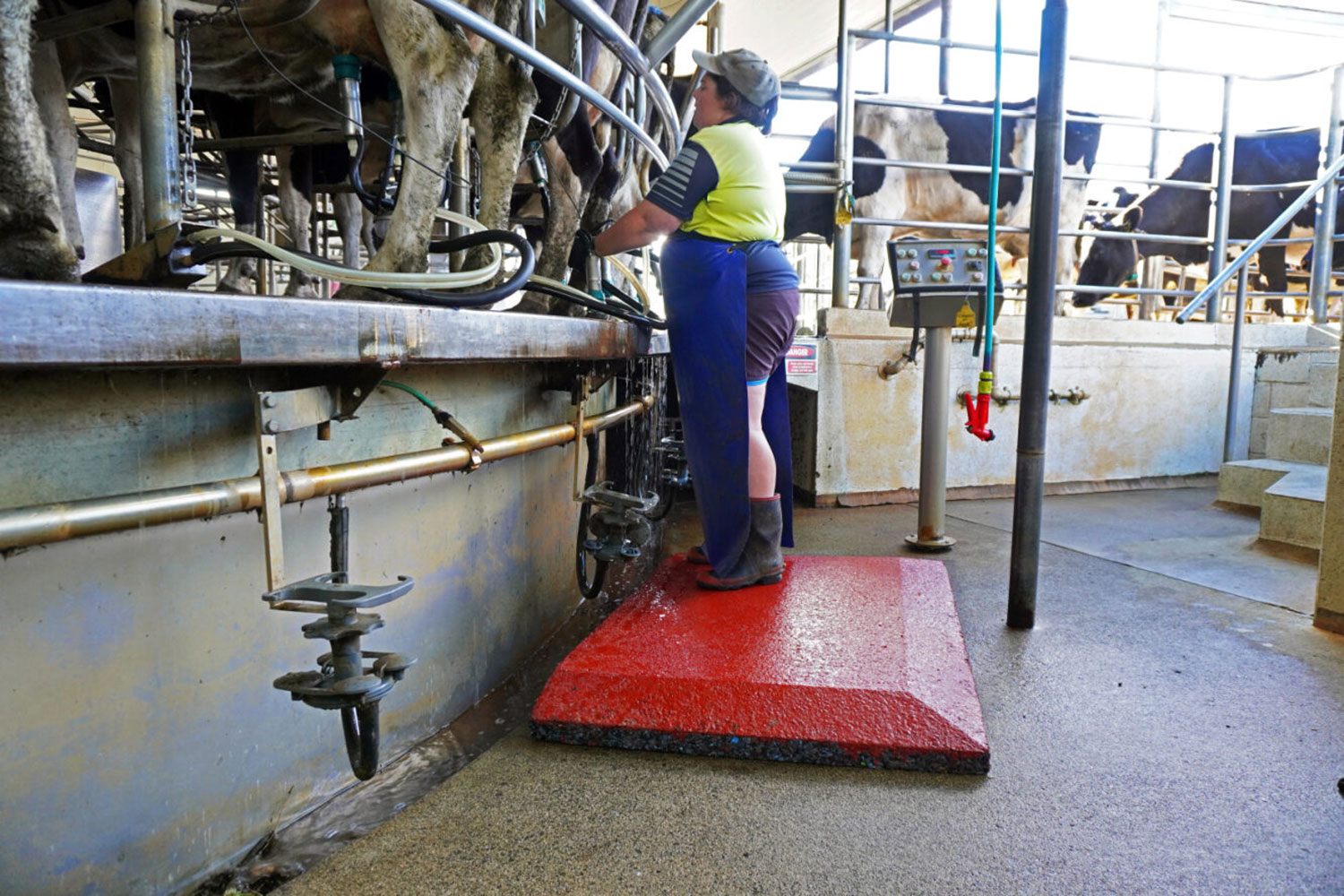

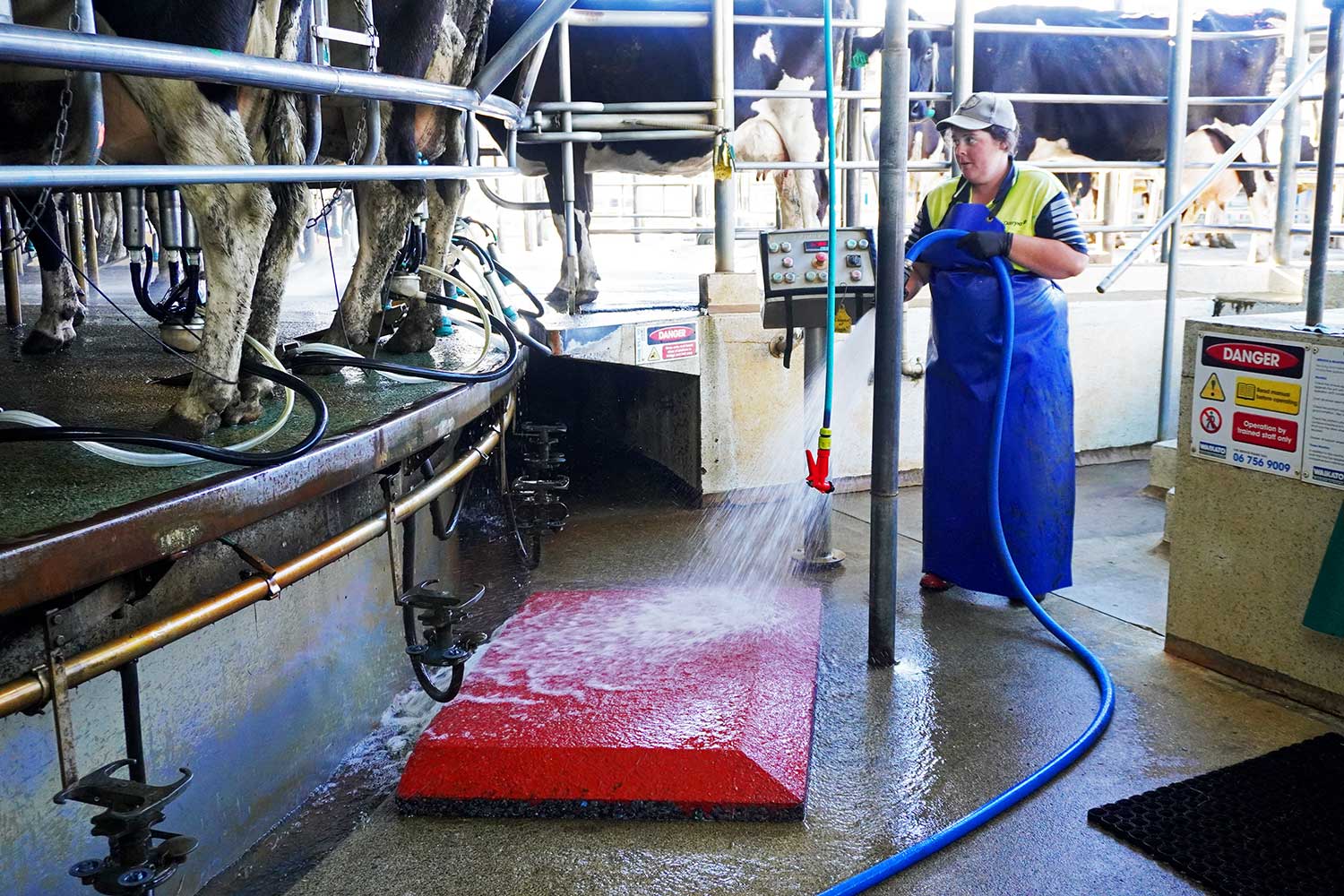

Cups-On Mat

Problem: Rotary platforms are at a fixed height but people milking vary in height which can lead to poor ergonomic cupping technique. Shorter milkers often use a thin mat, but that provides limited height improvement and can create a trip hazard.

Solution: A purpose-built, portable ‘cups-on’ mat that has a comfortable surface for standing long periods of time, elevates the height of a person cupping cows by up to 100mm and finished with sloped edges to reduce the trip hazard. We worked with The Wholesale Matting Company to develop a prototype which was tested on farms in 2024.

The Wholesale Matting Company will continue to work with farmers to improve the mat in 2024. Contact DairyNZ or The Wholesale Matting Company directly if you are interested in this mat for your rotary platform.

1 / 2 images

2 / 2 images

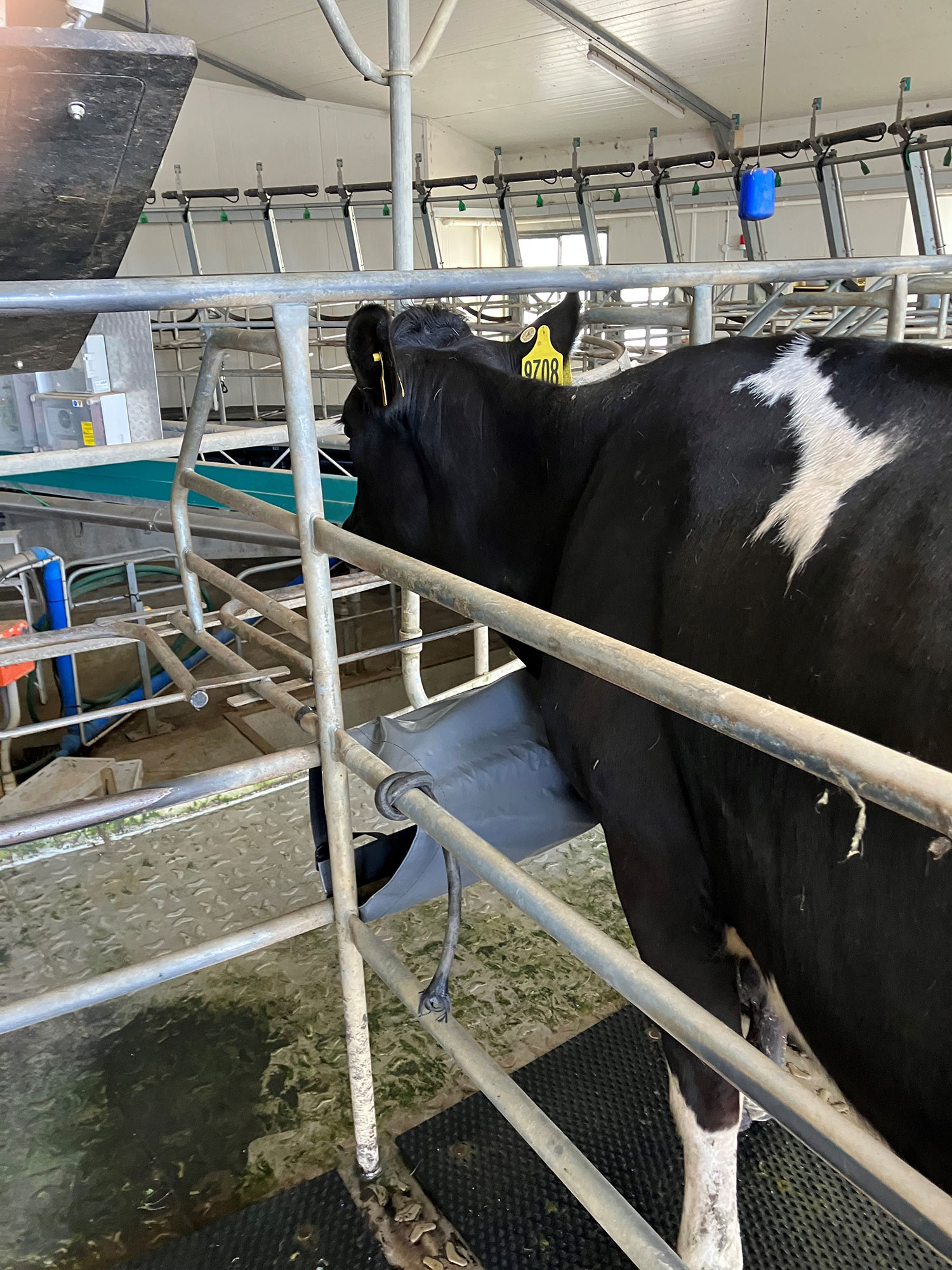

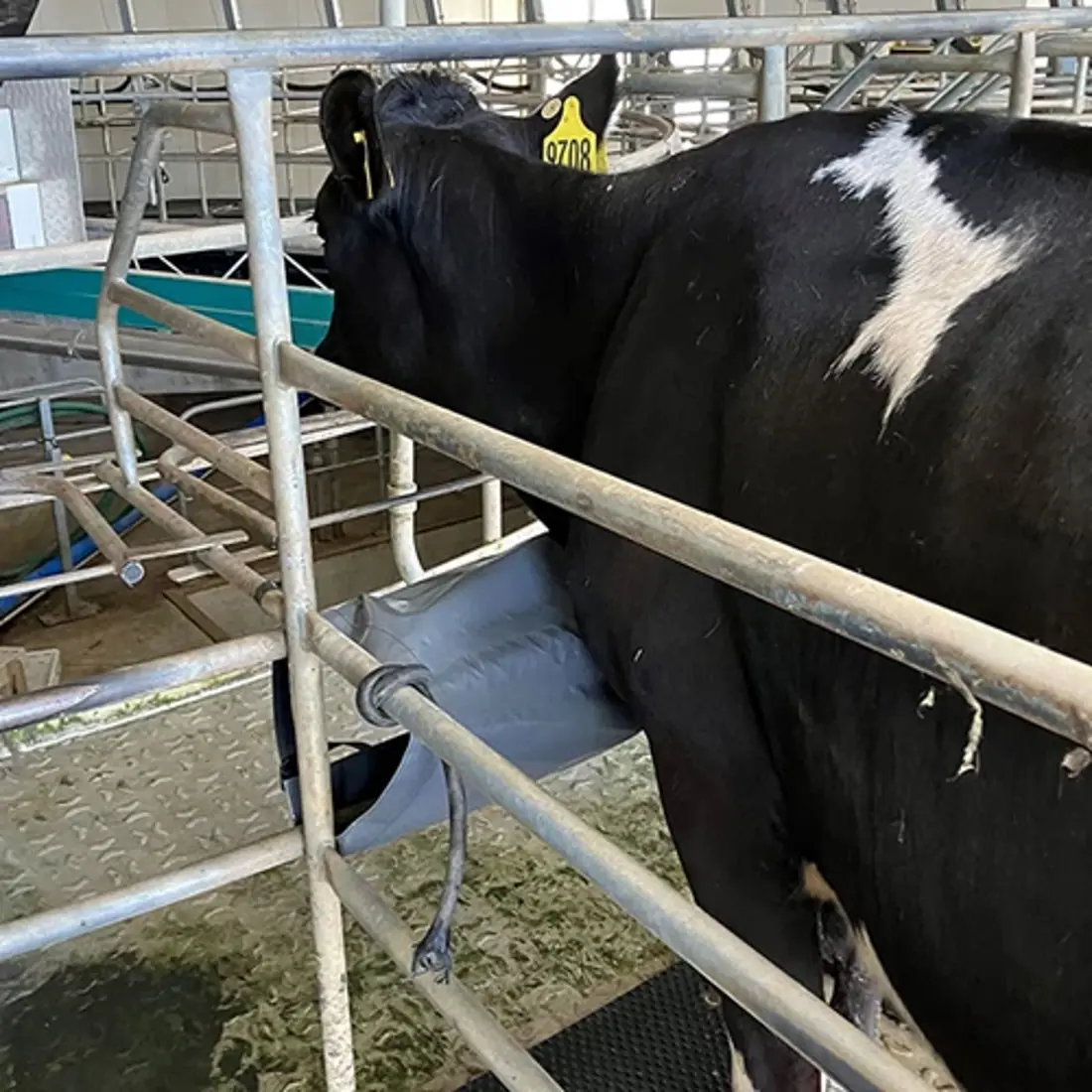

Flexible Breast Rail

Problem: Heifers and smaller cows in the herd often stand forward in the bail, meaning people cupping cows must reach to cup them. Over time, this leads to more strain on backs and shoulders.

Solution: A flexible breast rail concept was created which contains an elasticated rope at the front of the bail to encourage smaller cows to stand further back, while larger cows can still comfortably stand in the bail. Testing on a DairyNZ research farm showed that the concept worked well, but cows need care and time to adapt, and some larger cows did not go right into the bail which triggered the emergency stop switch.

The Flexible Breast Rail can be made by farmers from low-cost materials. Contact the DairyNZ team for the plans and information on materials.

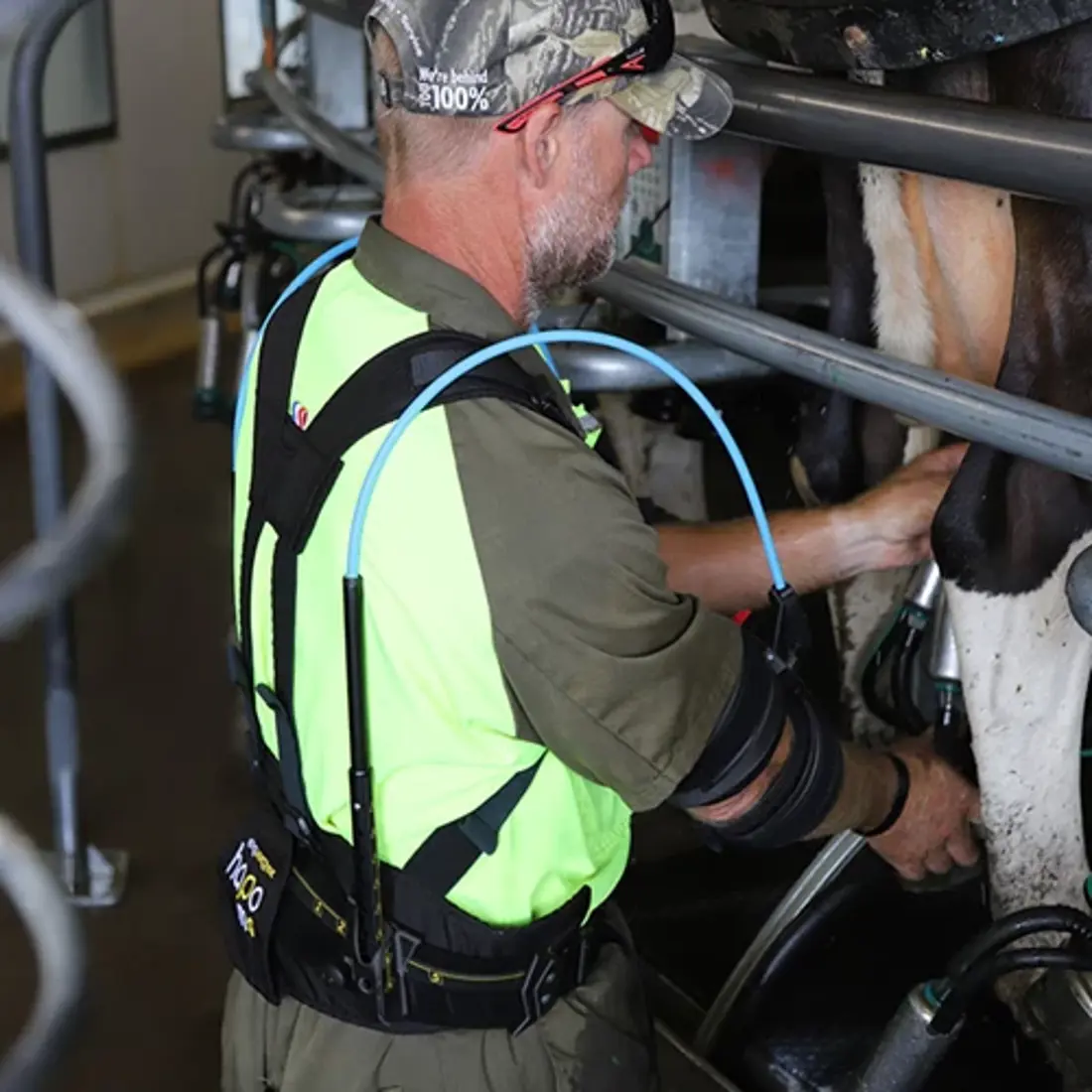

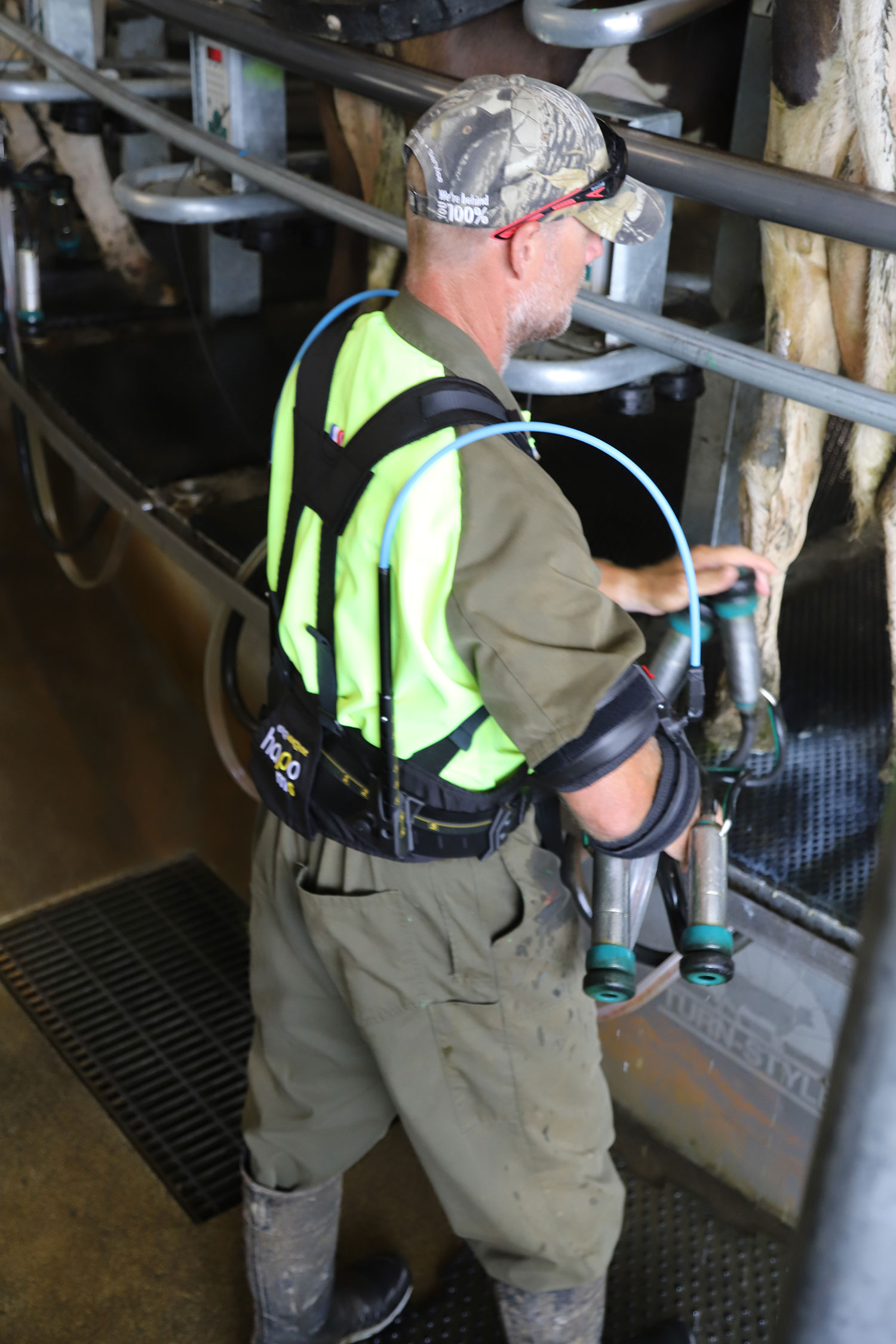

Exosuits review

Problem: Farmers told us that lifting and caring for calves leads to back strain, and that cupping large herds can shoulder strain.

Solution: Lightweight, passive exosuits are being used more to reduce strain in repetitive work environments. So, why not dairy farming? We tested three exosuits to see if they’re effective for repetitive jobs in dairy farming. We found that exosuits are most useful when worn for dedicated jobs on-farm, such as training calves to feed.

 There are a range of exosuits on the market, from places like Exxovantage and Herowear, however most still cost several thousand dollars each. They may be useful for specific tasks, or for helping people at risk of injury. A new lighter and less expensive exosuit for backs is being trialled on dairy farms in 2024.

What this research means for you

The project highlighted the impact that sprains and strains can have on farmers and productivity of dairy farm workplaces. The research helped to raise awareness of common sprain and strain injuries and create innovative solutions to reduce them. The project has led to providing farmers with tangible current and future options to reduce injury on-farm.

Meet the scientists

Dr Callum Eastwood

A social scientist, Callum leads projects in workplace design, workplace productivity, reducing dairy sprains and strains, and technology adoption. He specialises in technology adoption and integration using innovative and practical solutions on farm. For Callum, it's not just about creating science solutions, but ensuring they work for farmers.

Brian Dela Rue

A research engineer, Brian enjoys working alongside farmers and technology developers to better understand farmer needs and opportunities to improve workforce productivity and workplace design. Providing information to support farmers in making investment decisions in technologies that will add value to their farm business and farm teams is a key part of his role.

Research team

Contact for more information on the project: Callum.eastwood@dairynz.co.nz or Brian.Dela.Rue@dairynz.co.nz

Talking Dairy podcast

Collaborators and funders

This project is in collaboration with QCONZ, Healthy Lifestyle NZ, and Pāmu farms. This project has been made possible through $900,000 of co-funding by the ACC’s Workplace Injury Prevention programme, supported by a $150,000 investment by dairy farmers through the DairyNZ levy.
